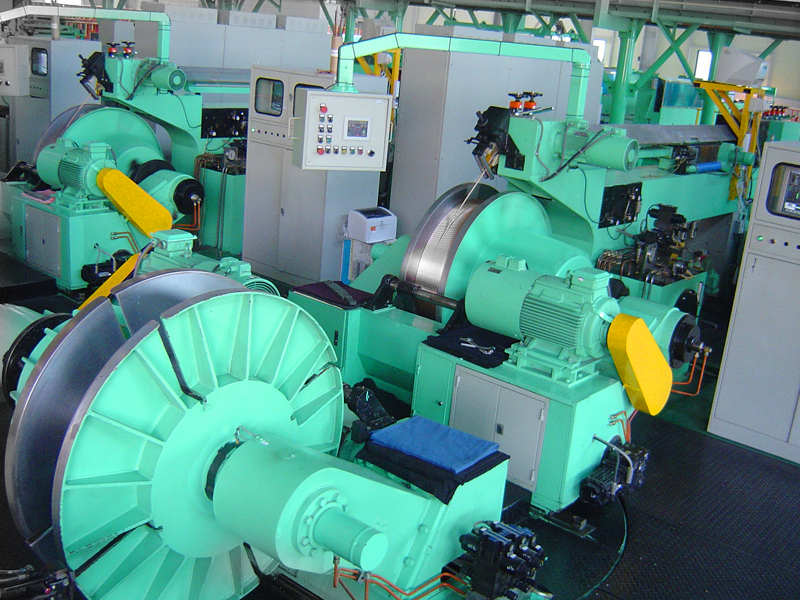

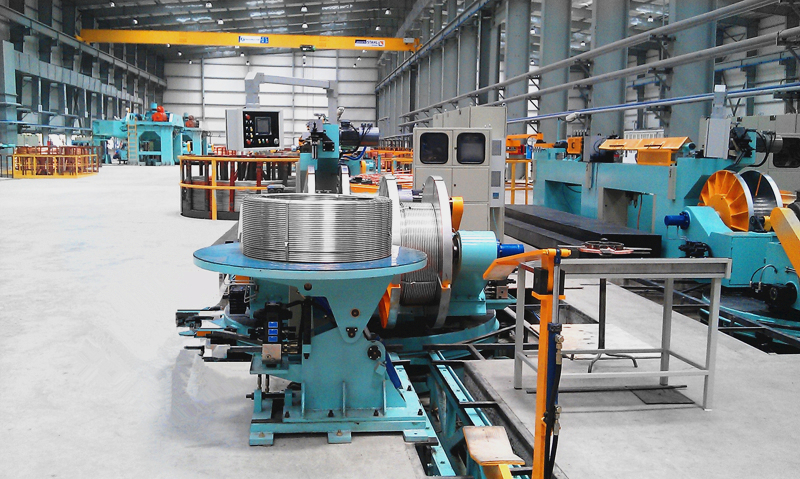

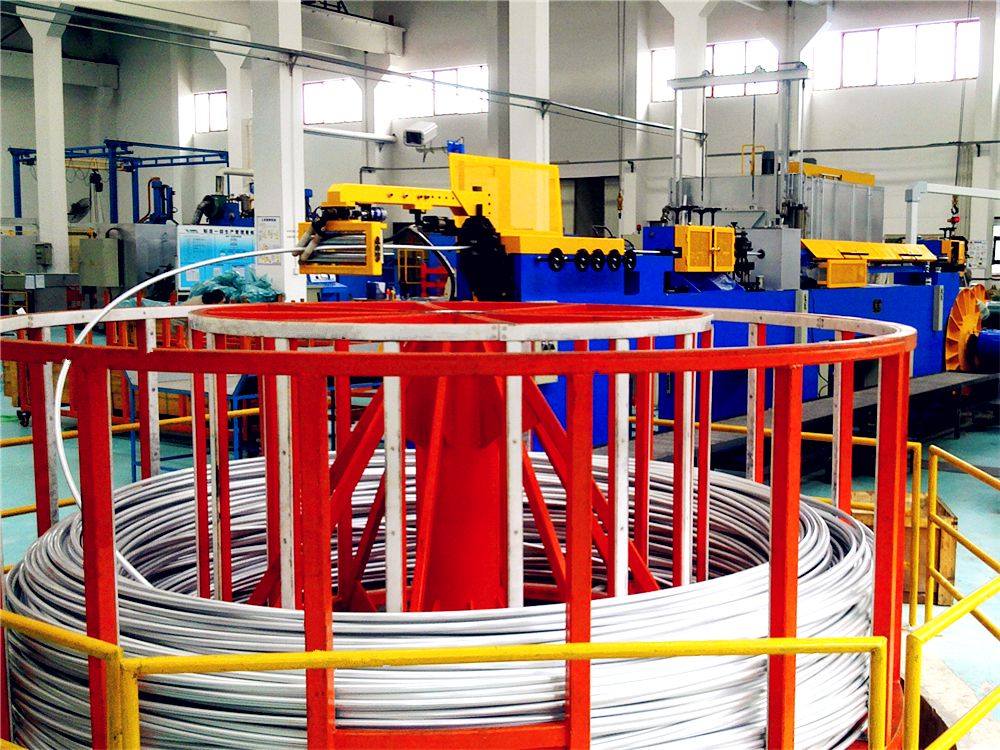

XR-JZS aluminum tube rewinding machine is used for flaw detection, finishing and winding of aluminum tubes, which is an indispensable supporting equipment for coil production.
This machine is a new model developed by XR-Hitech, which is novel in design and compact in structure.
The performance of winding is stable, high efficiency and low noise, and the synchronous speed regulation range is wide.
The performance of winding is stable, high efficiency and low noise, and the synchronous speed regulation range is wide.
The machine adopts AC speed regulation system to achieve the speed ratio synchronization of all parts of the whole machine, including unwinding, straightening, winding, etc., and each motor can be stepless variable.
During the operation of the entire system, the program is automatically controlled. When a fault occurs during operation, an automatic alarm will be realized, and the machine will automatically stop when there is no material. The shutdown during the winding process will not affect the winding performance.
Tube OD range | φ5~φ20mm |
Tube Wall-thickness Range | 0.2~1.2mm |
Rewinding Speed Range | 0~400m/min |
Max Coil OD | φ1150mm |
Max Coil Width | φ3050x400mm |
Package Table OD | 400mm |
Total Power | 130kw |
